Speeding up Min or Max ID’s on Partitioned Table

Speeding up Min or Max ID’s on Partitioned Table

Overview

A common scenario in using partitioned tables is to have a composite primary key where the first field (left side) is a unique id (the true PK), and an additional field defined to partition on.  There can be several reasons for this approach, but that is a different article.   Although explaining partitioning is beyond the scope of this article, it does need a quick overview of what it is, so this solution  makes sense.

When you are partitioning a table you are essentially creating separate data structures (B-trees) wrapped under a logical interface.  You can think of it as multiple identical tables in definition with different data, having a “union all” query defined in a view.  In fact before partitioning this was a common methodology to accomplish this task.

Now that I rambled a bit you want to know why when using a partitioned table does grabbing the min and max of the primary key take sooooo long, and how do you fix it.  Theoretically you would expect SQL to perform the following steps in grabbing the Max Id

1.         Grab the Max Id from each partition using a seek
2.         Hold the results in  temp storage
3.         Get the Max ID from the  temp storage, and return that result.

However SQL doesn’t do that, it actually scans each partition and finds the max id after it has examined every record in each partition.  This is very inefficient, and could kill a query that depends on this value, as well as impact a busy server low on physical resources.    So what we need to do, is manually write the code to perform the steps that SQL Server should actually be doing.

Example

Here I’ve created a table with 12 partitions defined on the Partfield.

create table PartTable

(ID int  identity(1,1),

PartField int not null,

Fill char(50) default 'Hello',

insertdate datetime default getdate(),

CONSTRAINT [pkIDPartField] PRIMARY KEY CLUSTERED

(

       ID ASC, partfield

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON)) ON testPS(PartField)

The goal is to get the Max ID on the ID field.

select max(ID) from PartTable

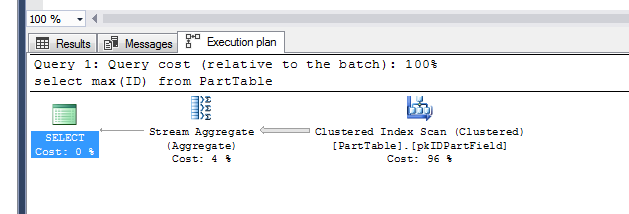

If you look at the query plan for the above statement you’ll see its scanning each partition.

Example

Step 1

Find the Partition numbers using the dmv sys.dm_db_partition_stats, and put the results into a temp table you can loop through to get the IDs. Notice in the predicate I have "in_row_data_page_count > 0", that's because often developers will have many partitions without data, for future use,

select partition_number into #parts from  sys.dm_db_partition_stats

where object_name(object_id) = 'PartTable'

and in_row_data_page_count > 0

Step 2

Create a temp table which will hold the results from each partition

create table #ids (

 MinID bigint,

 MaxID bigint)

Step 3

Populate the 2^nd table by looping through each partition using the first temp table you populated in step 1.  Here you use  “$Partition” in the where clause, which forces the query to do a seek, against each b-tree you query against.  Note you’ll need to know the name of the partition function that the field was defined on (testPartitionFunction).

Declare @minPart int, @maxPart int

select @minpart = min(partition_number), @maxPart = max(partition_number) from #parts

While @minPart != @maxPart

Begin

insert into #ids

select min(ID), max(ID) from

Parttable

where $partition.testPartitionFunction(PartField) = @minPart

set @minPart = @minPart + 1

end

step 4

Select from the temp table

select min(minid), max(maxid) from #ids

Conclusion

This is pretty straight forward, sometimes you just need to manually code what SQL should be doing on the covers.  The key with working with partitions is understanding you're  working with separate data structures, and you need to write your code with that in mind.

Stored Procedure Format

I like my code to be portable, so below is the same steps above put into a stored procedure that  can be used against any partitioned table with a similar structure.

Create Procedure GETMinMaxID_ON_Partition

@TableName varchar(100),

@IDColumnName varchar(100),

@PartitionColumnName varchar(100),

@PartitionFunctionName varchar(100)

as

Declare @InsertStmt  varchar(max)

--Get all populated Partition numbers into temp table

select partition_number into #parts from  sys.dm_db_partition_stats

where object_name(object_id) = @TableName

and in_row_data_page_count > 0

--Create table to store the min/max ids from all partitions

create table #ids (

 MinID bigint,

 MaxID bigint)

 --Set boundaries for your loop to query each partition

Declare @minPart int, @maxPart int

select @minpart = min(partition_number), @maxPart = max(partition_number) from #parts

--loop

While @minPart != @maxPart

Begin

--Insert into temp table max min values from each partition building and executing an adhoc statement for each partition value

Set @InsertStmt = 'insert into #ids select min(' +

@IDColumnName +

'), max(' +

@IDColumnName +

') from ' +

@TableName +

' where $partition.' +

@PartitionFunctionName +

'(' +

@PartitionColumnName +

') = ' + convert(varchar(10), @minPart)

exec(@InsertStmt)

set @minPart = @minPart + 1

end

--Return

select min(minid) as MinID, max(maxid) as MaxID from #ids
